How to set up a UTunnel VPN Server with Vultr

** Please contact support if you need any technical assistance to set up the On-Premise Server. **



This guide will help you to set up a UTunnel VPN server with the cloud provider Vultr.

UTunnel enables easy VPN server deployment with many popular cloud providers and Vultr is one among them. UTunnel VPN's one-click app is available in the Vultr marketplace, making the server deployment and management hassle free for Vultr users.

Please find the detailed instructions below on how to setup your UTunnel VPN server in Vultr:

1. Log in to your Vultr account and click on the Deploy Instance button or the + (plus) button on the right side of the Vultr dashboard.

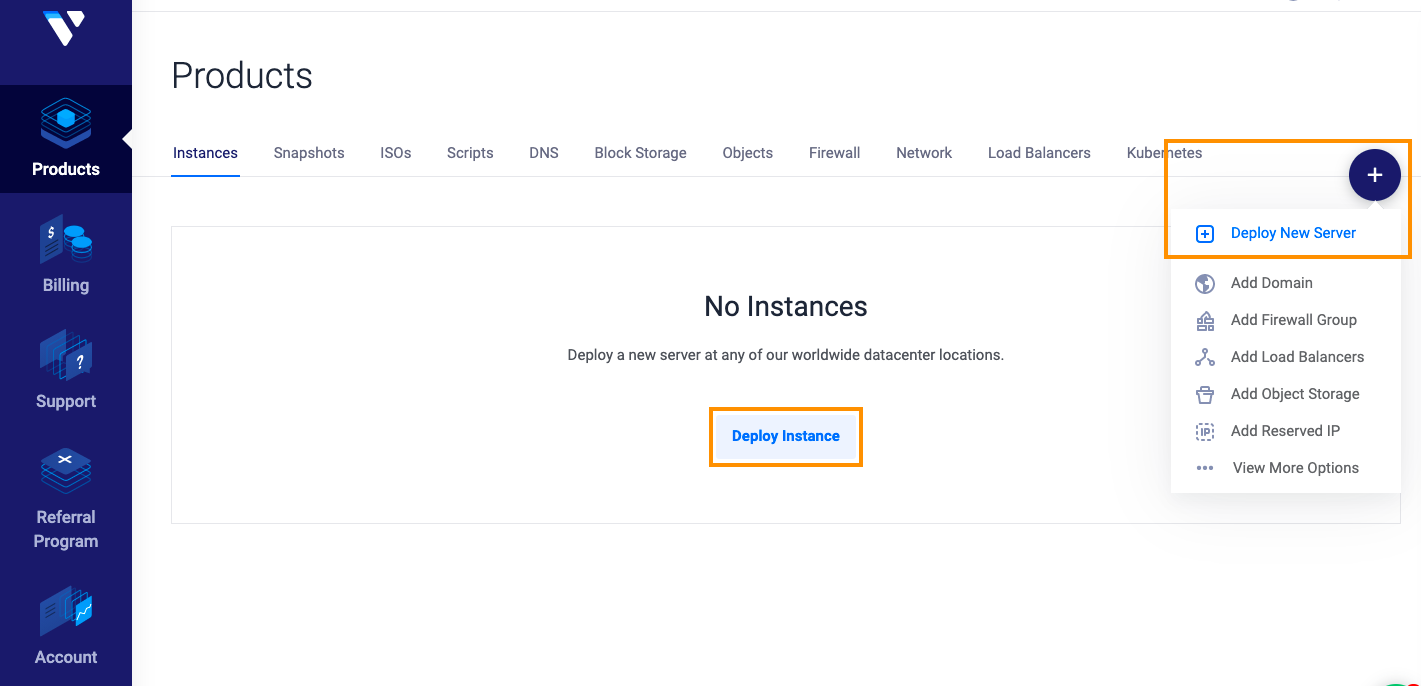

Vultr Account Dashboard

2. Choose a server option (high frequency, cloud compute, etc.) and the server location based on your requirements. In the Server Type section, click on the Marketplace Apps and search for UTunnel using the search field and select the UTunnel VPN app. Choose your preferred server size and deploy the Vultr instance.

Vultr Cloud instance creation

3. The instance will now be listed on your Vultr dashboard. When the server deployment is finished, note down the instance's IP address.

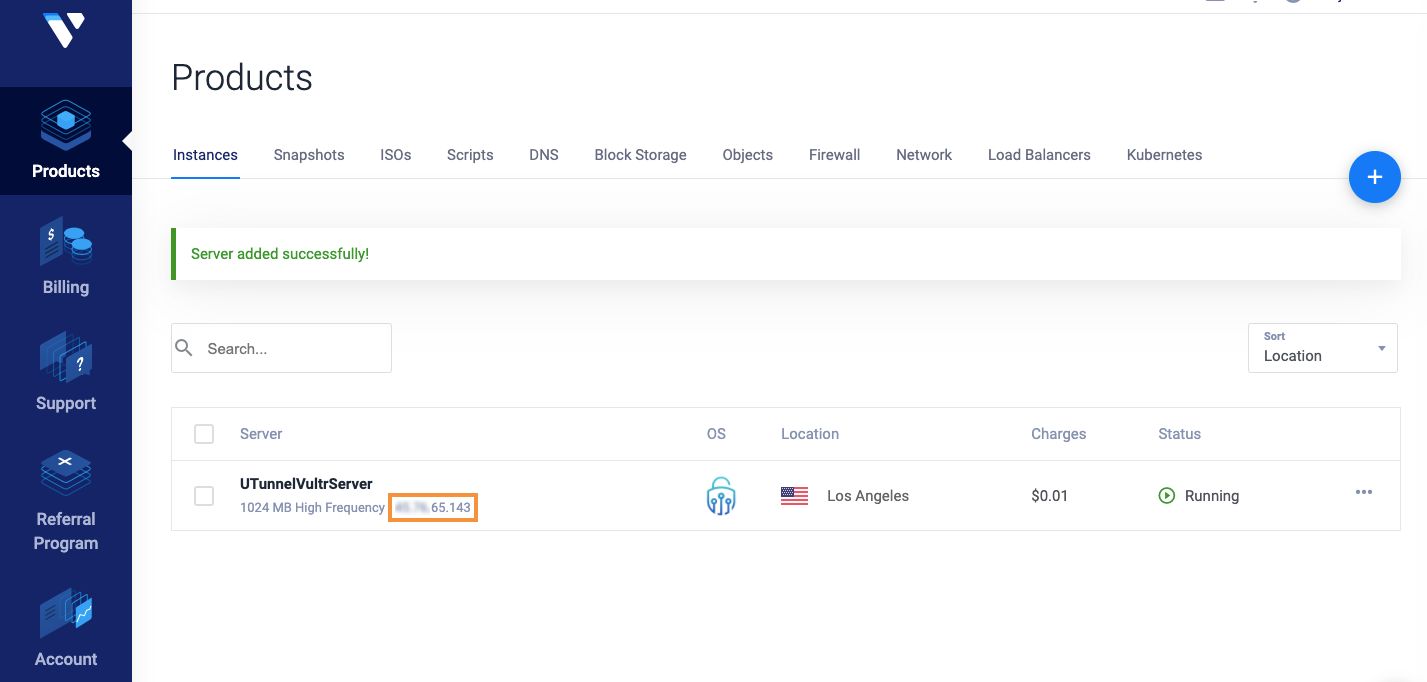

Vultr dashboard: instance details

4. Now, sign up and then log in to the UTunnel dashboard and click on either the Create Server Now or the Create Server button on the UTunnel dashboard.

UTunnel VPN user dashboard

5. You will then be prompted to provide your billing address details. You can either provide the details or skip the step to do it later.

6. The next step is to select your subscription and server type. You should choose the On-Premise option here and enter the server details as given below:

  • Package: You can select either the Basic or Standard subscription plan
  • Server Type: Select On-Premise
  • Server Name: An easily identifiable name of your choice
  • IP address: Enter your Vultr server IP address
  • VPN accounts: Select the number of VPN users you want to allow access to this server
  • Coupon: Enter the coupon code if you have any

Click on the Proceed button toward the right bottom of the screen.

VPN server details page

7.  Complete the payment and then you will be redirected to the UTunnel dashboard where you can see the status of server creation.

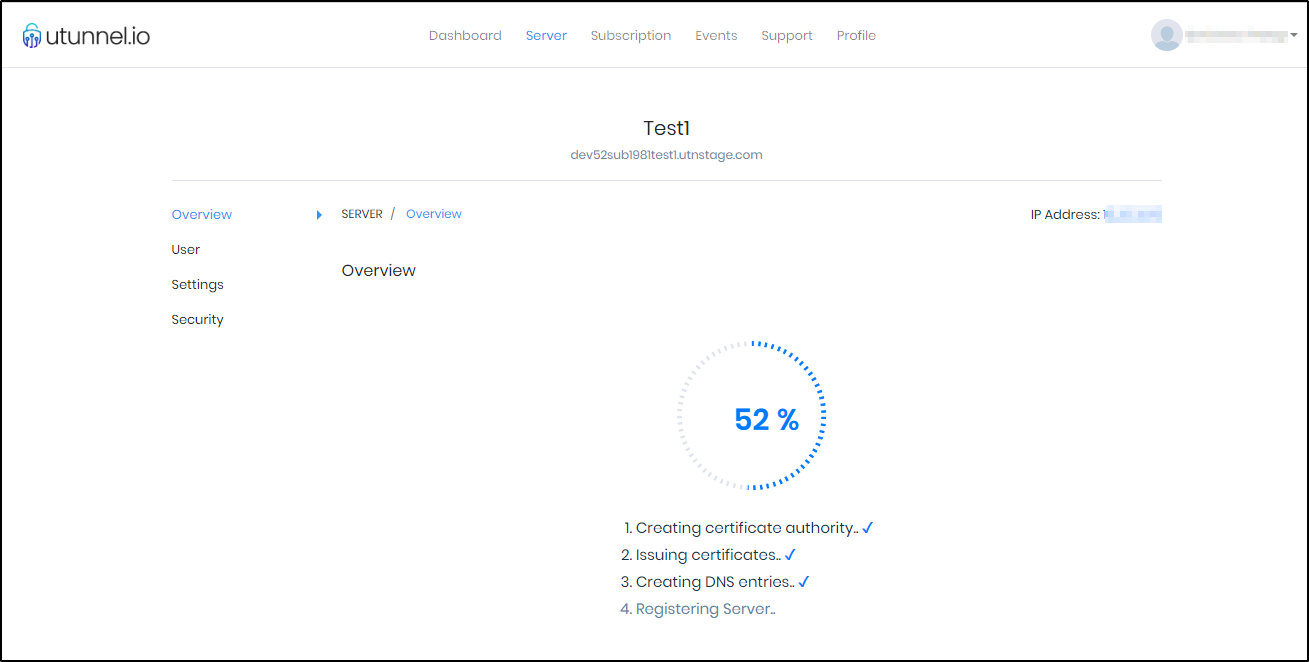

VPN Server creation progress


8. Once that process is finished, you will be redirected to the Server Details screen where a registration token will be displayed. Copy this registration token.

VPN Server Registration Token

9. Now, connect to your Vultr server via SSH. You will need sudo access to complete the following steps. After the successful login, execute the commands given below. Replace the string 'REG_TOKEN' in the first command with the token you obtained in the above step.

sudo /utunnel/bin/utnservice register REG_TOKEN

Now, start the UTunnel Service on your server by running the following command.

sudo /utunnel/bin/utnservice start



10. Make sure that inbound connections to the following ports are allowed to accept VPN connections.

Ports used for OpenVPN connections

  • TCP 443
  • UDP 443
  • UDP 53 (if scramble VPN is enabled)

Ports used for IPSEC connections

  • UDP 4500
  • UDP 500

Now your server would be ready to accept VPN connections. Invite users into your server and start using the VPN.

If you require any further assistance, you can open a support ticket here or email us at [email protected] and we'll be happy to help!
